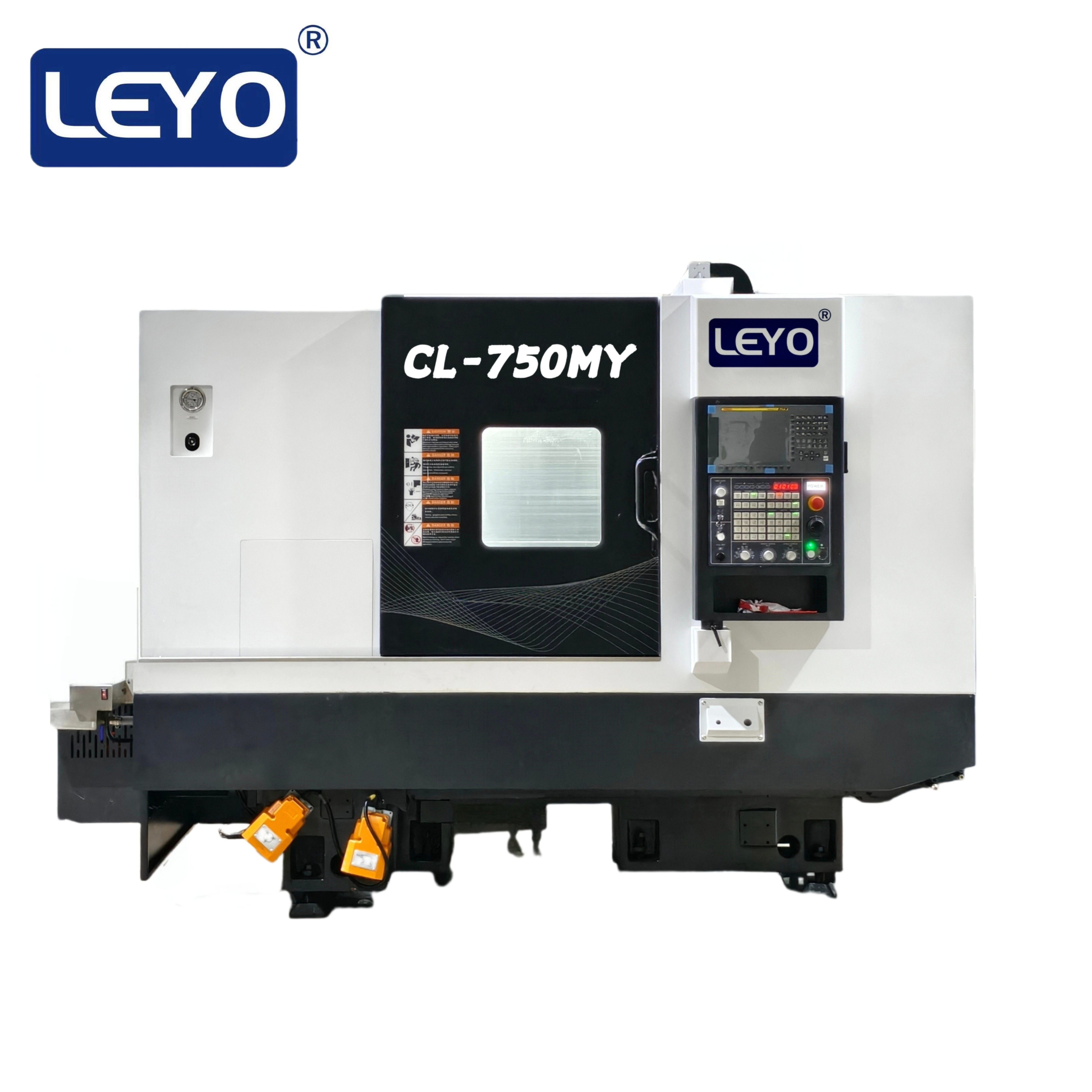

CL-750MY
LEYO
Availability: | |
---|---|
Quantity: | |
PDF Export | |
The usage range of LEYO cnc turning milling machining center is very wide, mainly including the following aspects:
In the aerospace industry, LEYO cnc turning milling machining center can efficiently and accurately process complex aerospace components, such as composite material parts for aircraft wings. This processing method can significantly improve production efficiency, reduce auxiliary time during the processing, shorten the production cycle, and ensure the high quality and reliability of components.
Automotive manufacturing: In automotive manufacturing, turning milling machining center can be used to process various complex shaped automotive components, such as engine parts, transmission system parts, etc. This processing method can improve production efficiency, reduce the number of tool changes and clamping, thereby reducing production costs.
In mold manufacturing, the turning milling machining center can process various high-precision mold parts, such as mold cavities, cores, etc. This processing method can ensure high precision and consistency of the parts, meeting the high requirements of mold manufacturing and medical device manufacturing.
In medical device manufacturing, turn milling machining centers can be used to process various precision medical device parts, such as surgical instruments, inspection equipment parts, etc. This processing method can ensure high precision and reliability of the parts, meeting the high requirements of medical devices.
The usage range of LEYO cnc turning milling machining center is very wide, mainly including the following aspects:
In the aerospace industry, LEYO cnc turning milling machining center can efficiently and accurately process complex aerospace components, such as composite material parts for aircraft wings. This processing method can significantly improve production efficiency, reduce auxiliary time during the processing, shorten the production cycle, and ensure the high quality and reliability of components.
Automotive manufacturing: In automotive manufacturing, turning milling machining center can be used to process various complex shaped automotive components, such as engine parts, transmission system parts, etc. This processing method can improve production efficiency, reduce the number of tool changes and clamping, thereby reducing production costs.
In mold manufacturing, the turning milling machining center can process various high-precision mold parts, such as mold cavities, cores, etc. This processing method can ensure high precision and consistency of the parts, meeting the high requirements of mold manufacturing and medical device manufacturing.
In medical device manufacturing, turn milling machining centers can be used to process various precision medical device parts, such as surgical instruments, inspection equipment parts, etc. This processing method can ensure high precision and reliability of the parts, meeting the high requirements of medical devices.
LEYO CL-750MY Cnc Turning Milling Machining Center | Unit | CL-750MY |
X/Y/Z axis travel | mm | 260/100(±50)/800 |
X/Y/Z axis fast moving speed | m/min | *24/12/24 |
Max machining length | mm | 690 |
Max machining diameter | mm | Φ400 |
Adjacent tool machining interference diameter | mm | Φ208 |
Max rotating diameter | mm | Φ660 |
Bed saddle rotating diameter | mm | Φ400 |
Spindle nose | / | A2-6 |
Spindle bar through-hole diameter | mm | Φ52/65 |
Chuck | inch | 8 |
Spindle speed | rpm | 4500 |
Spindle motor power | kw | 11.0/15.0 |
C-axis resolution | 1/n | 1024*384 |
Height of center | mm | 165 |
Interface specification | / | BMT55 |
Width of edge of cutter head | mm | 350 |
Number of tool | pcs | 12 |
Square tool holder handle diameter | mm | 25 |
Bore hole of boring tool holder | mm | 40 |
Number of moving knives | pcs | 12 |
Power knife lock nozzle | / | Er32 |
Power knife motor power | kw | 2.7 |
Power tool torque (Max.) | N.m | 46 |
Max speed of power knife | rpm | 4000 |
Center distance | mm | 780 |
Driving mode | / | Z-axis drive |
Thimble connector | mk | 5# |
Controller | / | Fanuc/SYNTEC |
Machine weight (approx.) | kg | 4800 |
Machine outline dimension | mm | 3070*1840*2100 |
Includes the length of the chip extractor | mm | 4240 |
LEYO CL-750MY Cnc Turning Milling Machining Center | Unit | CL-750MY |
X/Y/Z axis travel | mm | 260/100(±50)/800 |
X/Y/Z axis fast moving speed | m/min | *24/12/24 |
Max machining length | mm | 690 |
Max machining diameter | mm | Φ400 |
Adjacent tool machining interference diameter | mm | Φ208 |
Max rotating diameter | mm | Φ660 |
Bed saddle rotating diameter | mm | Φ400 |
Spindle nose | / | A2-6 |
Spindle bar through-hole diameter | mm | Φ52/65 |
Chuck | inch | 8 |
Spindle speed | rpm | 4500 |
Spindle motor power | kw | 11.0/15.0 |
C-axis resolution | 1/n | 1024*384 |
Height of center | mm | 165 |
Interface specification | / | BMT55 |
Width of edge of cutter head | mm | 350 |
Number of tool | pcs | 12 |
Square tool holder handle diameter | mm | 25 |
Bore hole of boring tool holder | mm | 40 |
Number of moving knives | pcs | 12 |
Power knife lock nozzle | / | Er32 |
Power knife motor power | kw | 2.7 |
Power tool torque (Max.) | N.m | 46 |
Max speed of power knife | rpm | 4000 |
Center distance | mm | 780 |
Driving mode | / | Z-axis drive |
Thimble connector | mk | 5# |
Controller | / | Fanuc/SYNTEC |
Machine weight (approx.) | kg | 4800 |
Machine outline dimension | mm | 3070*1840*2100 |
Includes the length of the chip extractor | mm | 4240 |
Customized service ① Design logo for free or remove logo services. ② Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services. ③ Customized machin
Customized service ① Design logo for free or remove logo services. ② Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services. ③ Customized machin
