VMC855
LEYO
| Quantity: | |
|---|---|
| PDF Export | |

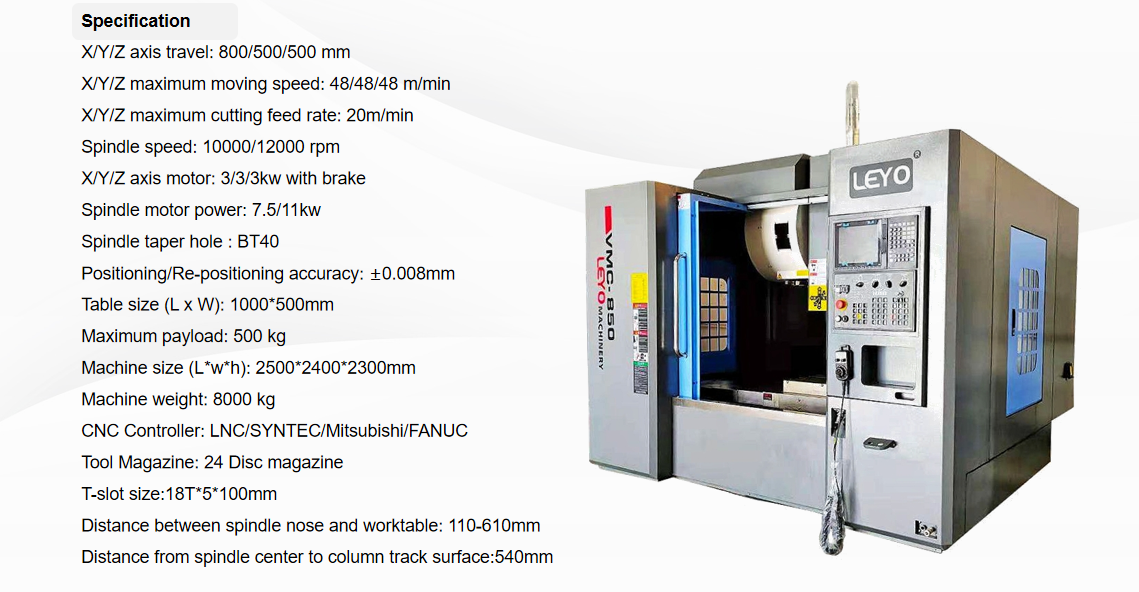

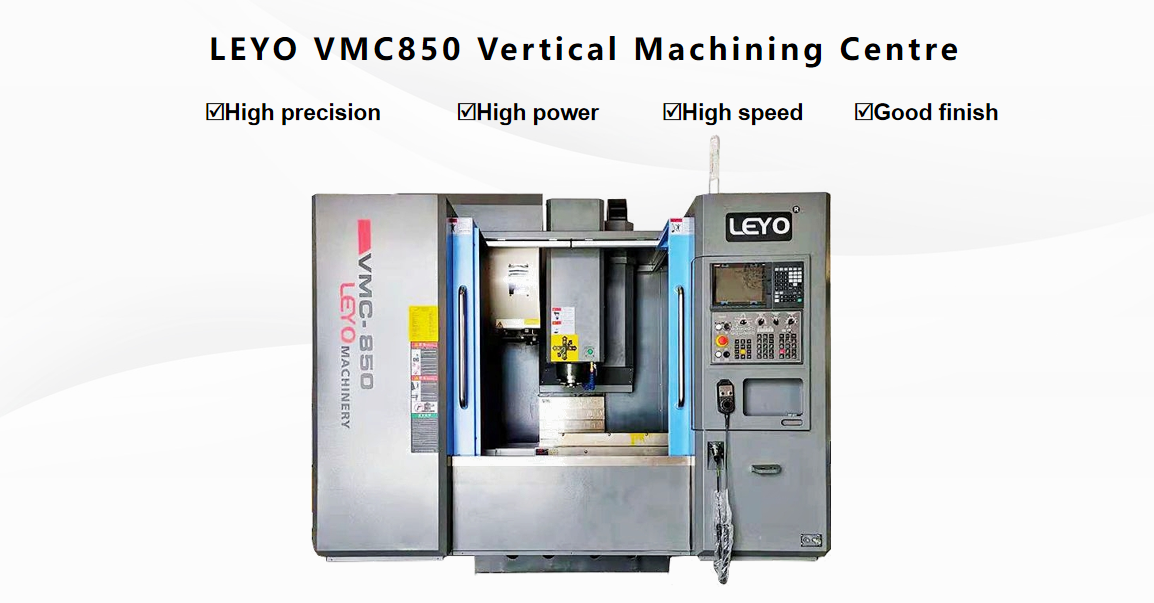

LEYO VMC850 Vertical Machining Center Description:
The LEYO VMC850 vertical machining center is currently the most versatile, popular, and versatile model, and 80% of the products on the market can be processed through it. Mainly used for various complex shapes of 2D and 3D concave and convex models, as well as complex cavities and surfaces. It is also suitable for milling, drilling, expanding, boring, tapping and other processing processes of valve, cam, mold, plate and box parts in the manufacturing industry. It is more suitable for both small and medium-sized batch and multi variety processing and production, as well as entering automatic lines for batch production; It should have characteristics such as high rigidity, high precision, high speed, high efficiency, high reliability, and high torque.

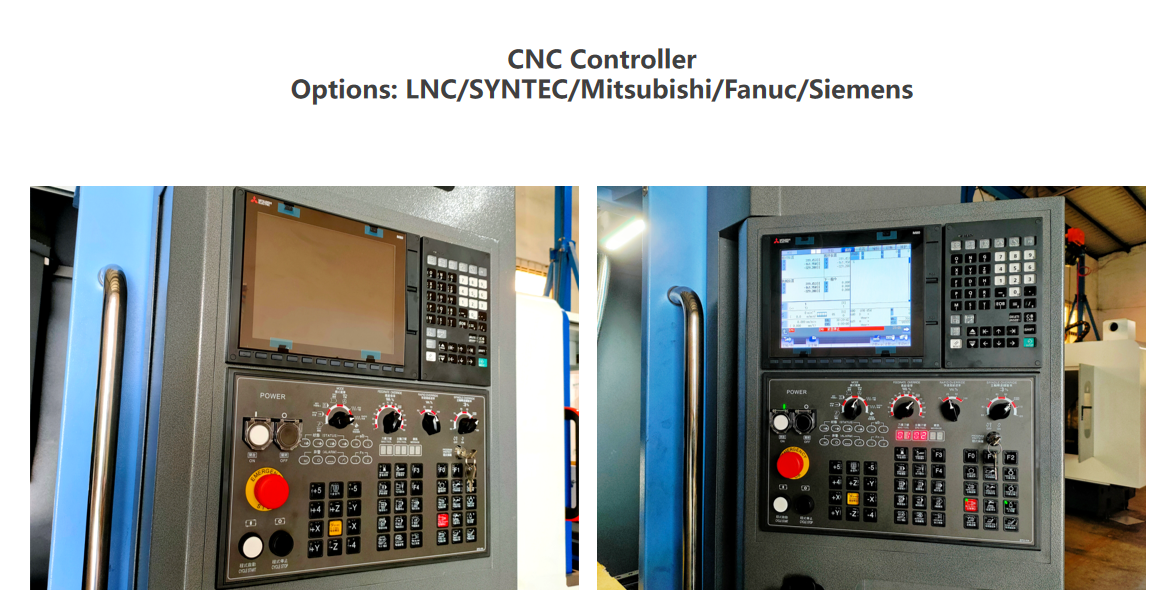

We use high-performance and highly reliable Taiwanese LNC and SYNTEC controllers, Japanese Mitsubishi and Fanuc controllers, as well as German Siemens and HEIDENHAIN controllers. Use and maintenance of tool path motion graphics display, intelligent warning display, self diagnosis and other functions; Multi stage pre reading control is particularly suitable for mold processing and teaching demonstrations of high-speed and large capacity programs; Convenient for fast and efficient transmission and online processing of large capacity programs.
| LEYO VMC650-966 vertical machining center Technical Parameters | |||||||
| Items | Unit | VMC650 | VMC850 | VMC855 | VMC866 | VMC966 | |
| X/Y/Z axis travel | mm | 600/400/450 | 800/500/500 | 800/550/550 | 800/600/600 | 900/600/600 | |
| X/Y/Z rapid moving speed | m | 48/48/48 | 36/36/36 | ||||
| X/Y/Z rapid feeding speed | m | 20 | |||||

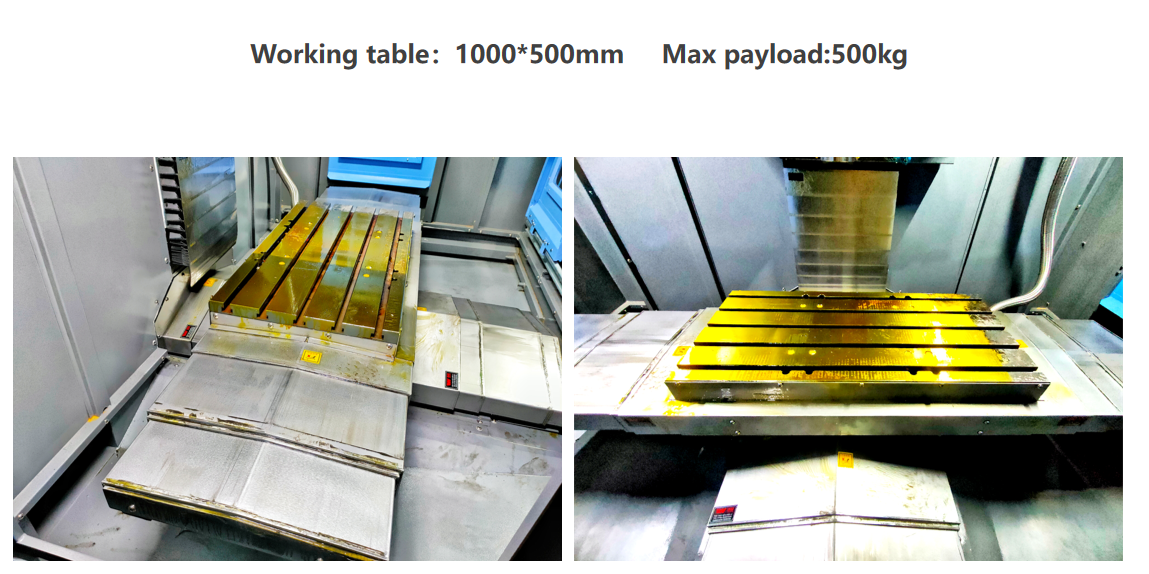

| Working table (L*W) | mm | 700x420 | 1000x500 | 1000x550 | 1000x600 | 1050x600 | |
| Working table max load | kg | 300 | 500 | 600 | 700 | 800 | |

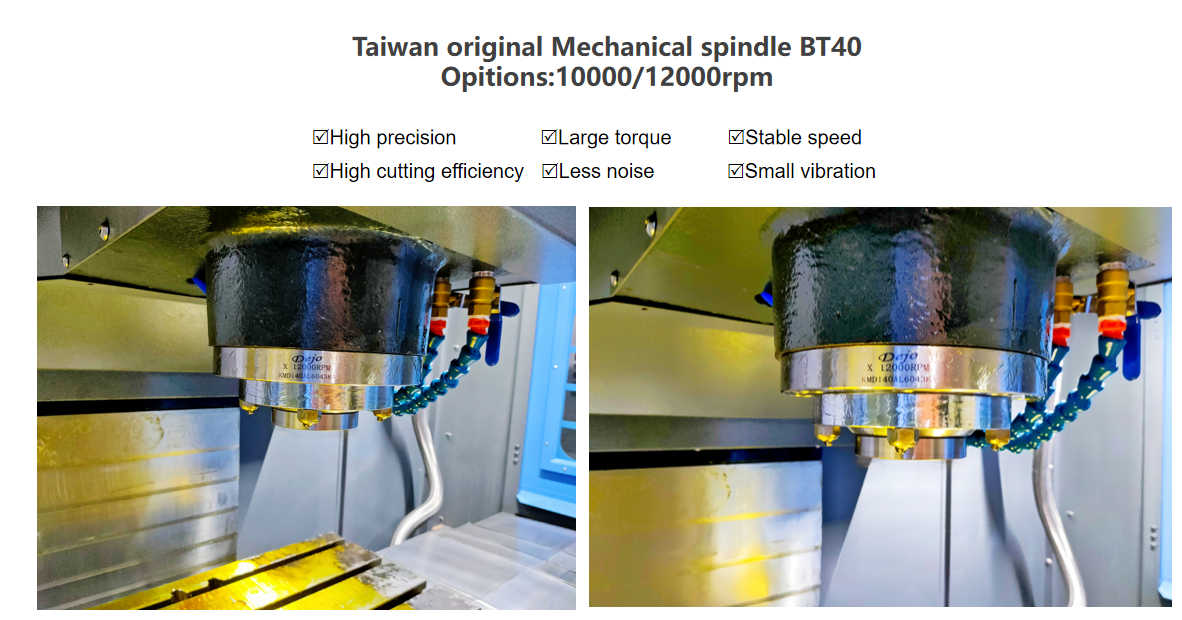

| Spindle taper hole | BT40 | ||||||
| Spindle type* | Belt/Direct | ||||||
| Spindle motor power* | kw | 7.5/11 | |||||
| Spindle speed* | rpm | 8000/10000/12000 | |||||
| Controller* | GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens | ||||||

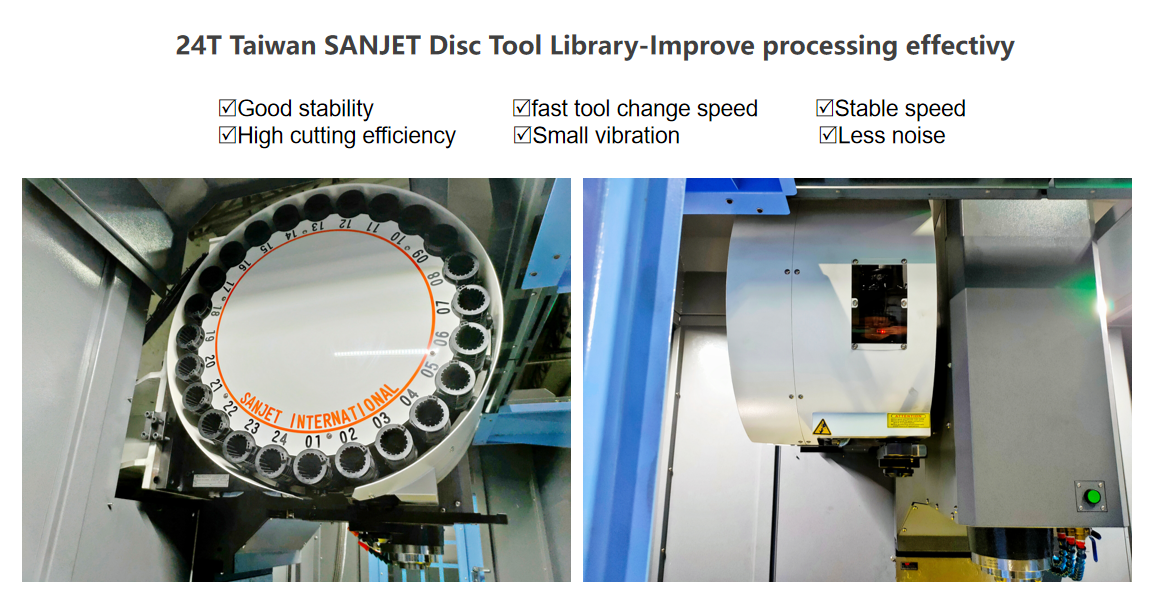

| Tool magazine capacity * | T | 24/None | |||||
| X/Y/Z position accuracy | ±0.005 | ||||||
| X/Y/Z reposition accuracy | ±0.003 | ||||||
| Machine weight | kg | 3800 | 5100 | 5200 | 5300 | 5500 | |
| Machine size | mm | 2600*2278*2375 | 2600*2376*2300 | 2600*2400*2300 | 2600*2450*2300 | 2680*2200*2300 | |
| Tip：The asterisk is optional,and price is different. More requirement contact us. | |||||||

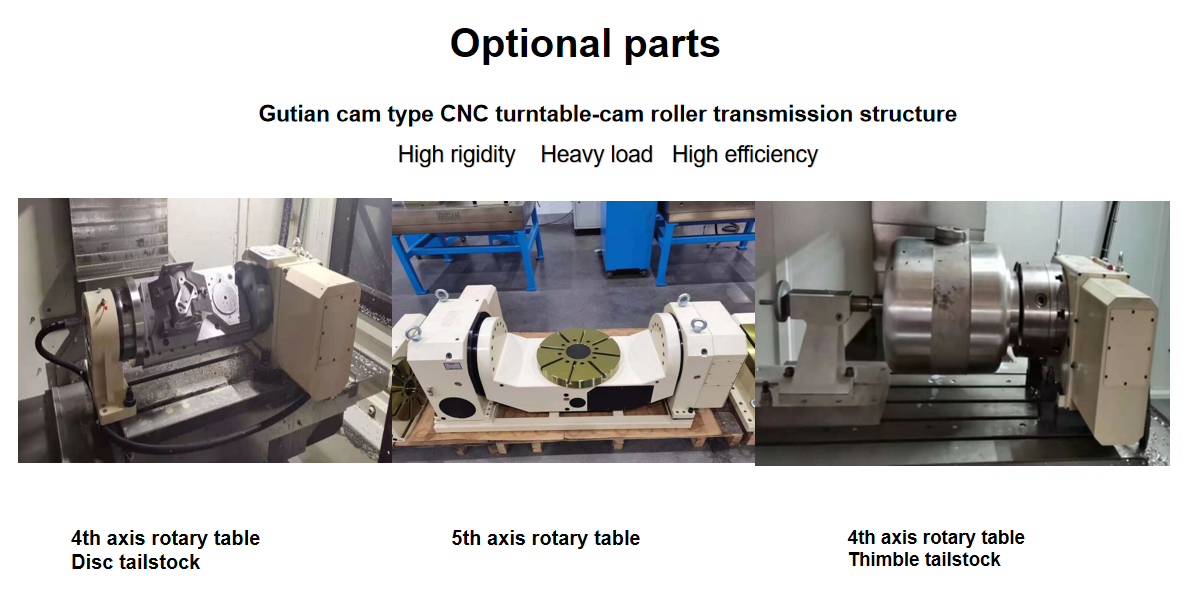

| Optional function: coolant through spindle/chip conveyor/4/5 axis cnc rotary table/oil mist separator/oil skimmer,and so on. Tip:We also can offer other machine accessories and tools:tool holder/collet chuck/cutter,and so on.We provide one-stop solution,more requirement contact us. | |||||||
