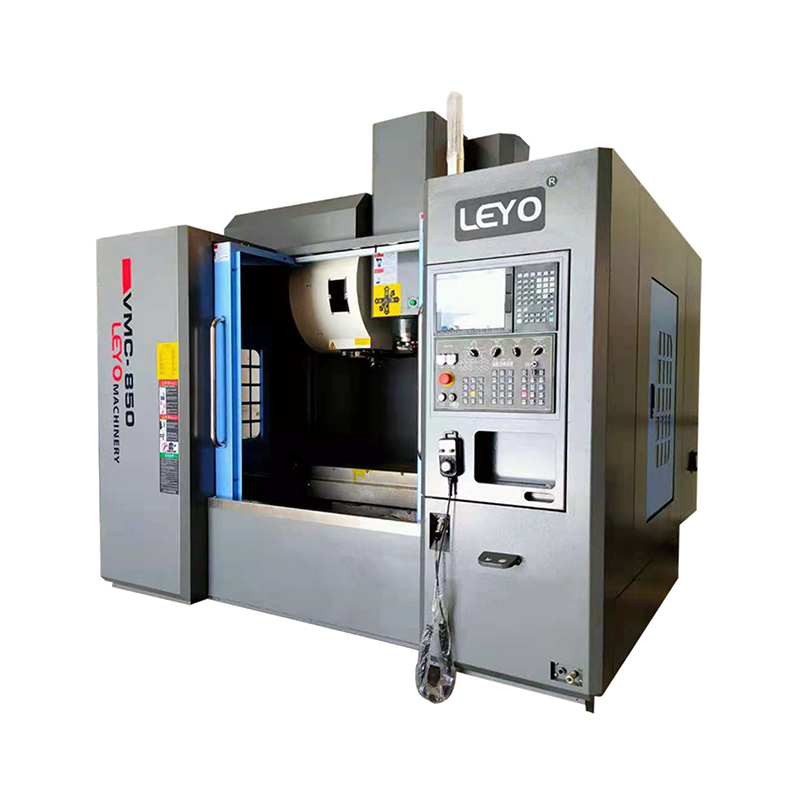

LEYO VMC850 VMC855 VMC856 VMC866 3 Axis 4 Axis 5 Axis Vertical Machining Center Cnc Machining Center Cnc Machine Centre Machining Centre

LEYO VMC 850 VMC 855 VMC 856 VMC 866 3 Axis 4 Axis 5 Axis Vertical Machining Center Cnc Machining Center Vertical Milling Machine

  • VMC850

  • LEYO

Availability:
Quantity:
Inquire Add to Basket

PDF Export
LEYO VMC650-966 vertical machining center Technical Parameters
Items Unit VMC650 VMC850 VMC855 VMC866 VMC966
X/Y/Z axis travel mm 600/400/450 800/500/500 800/550/550 800/600/600 900/600/600
X/Y/Z rapid moving speed m 48/48/48 36/36/36
X/Y/Z rapid feeding speed m 20
Working table (L*W) mm 700x420 1000x500 1000x550 1000x600 1050x600
Working table max load kg 300 500 600 700 800
Spindle taper hole
BT40
Spindle type*
Belt/Direct
Spindle motor power* kw 7.5/11
Spindle speed* rpm 8000/10000/12000
Controller*
GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool magazine capacity * T 24/None
X/Y/Z position accuracy
±0.005
X/Y/Z reposition accuracy
±0.003
Machine weight kg 3800 5100 5200 5300 5500
Machine size mm 2600*2278*2375 2600*2376*2300 2600*2400*2300 2600*2450*2300 2680*2200*2300
Tip：The asterisk is optional,and price is different. More requirement contact us.
Optional function: coolant through spindle/chip conveyor/4/5 axis cnc rotary table/oil mist separator/oil skimmer,and so on.
Tip:We also can offer other machine accessories and tools:tool holder/collet chuck/cutter,and so on.We provide one-stop solution,more requirement contact us.


7



LEYO is a cnc machine manufacture, our main product is cnc milling machine, cnc machining centre.Here is our main product:


Cnc Milling machine series
M6(X/Y/Z:600/500/250)|M7(X/Y/Z:700/600/300)|M8(X/Y/Z:800/700/330)

Vertical machining center series
V650(X/Y/Z:600/450/450) | V850(X/Y/Z:800/500/550)

V855(X/Y/Z:800/550/550) | V856(X/Y/Z:820/550/600)

V866(X/Y/Z:800/600/600) | V966(X/Y/Z:900/600/600)

V977(X/Y/Z:900/700/700)

V1060(X/Y/Z:1000/600/600) | V1160(X/Y/Z:1100/600/600)

V1165(X/Y/Z:1100/650/600)  | V1270(X/Y/Z:1200/700/700)

V1370(X/Y/Z:1300/700/700) | V1580(X/Y/Z:1500/800/700)

Gantry milling machine series
G1080(X/Y/Z:1000/800/400) | G1010(X/Y/Z:1000/1000/500)
G1280(X/Y/Z:12000/800/500) | G1131Z(X/Y/Z:1350/1200/600)

G1614Z(X/Y/Z:1650/1400/700) | G2016Z(X/Y/Z:2100/1650/700)
G2516Z(X/Y/Z:2500/1650/700) | G2518Z(X/Y/Z:2600/1800/700)

G2520Z(X/Y/Z:2500/2020/900) | G3016Z(X/Y/Z:3100/1630/700)
G3018Z(X/Y/Z:3200/1800/700) | G3020Z(X/Y/Z:3000/2020/900)

Horizontal machining center series
HMC-50/HMC-50L working table:500*500
HMC-63/HMC-63S/HMC-63D working table:630*630
HMC-80/HMC-80D working table:800*800
HMC-100/HMC-100H working table:1000*1000

More models and other 3/4/5 axis customized machine. If you are interested,contact us to get more details and discount.
